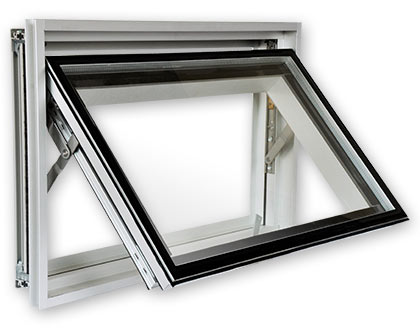

This is a project-out, concealed-style window, which gives it the seamless appearance of an all-glass exterior with no metal frames visible. It is installed in the curtainwall framing system, and is available in manual or rotary operation.

3700 Series Windows CVW3700 Series
Application
Concealed Vent
Frame Joints
Screw-spline
Window Joints
Mitered-clip, Epoxy & Stake
Glass Thickness
1"
Face Width
-
Frame Depth
3-1/2"
Hardware
Optional Hardware
Air Infiltration
<.01CFM/Ft2
Static Water
12 PSF
Class CW-PG80
Life Cycle Tested
2500 Cycles
U-Factor
.56
Screen

CVW Concealed Vent
CAD File (DWG):
Details:
Installation Instructions:
Test Reports:
Specs:

ZIP File

PDF File
E3704
E3705
E3710
E3720

PDF File
PDF File
Text File
