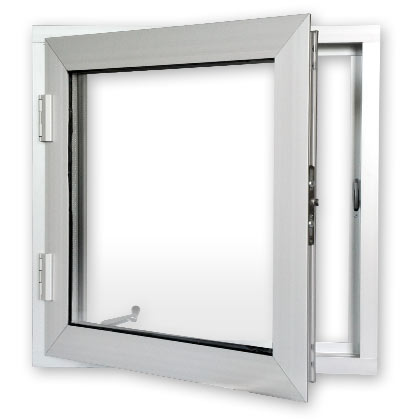

This window is project-out, casement-style, opening from the side rather than the top or bottom. It offers left or right hand availability, as well as manual or rotary operation. Choose from two frame options: large (1-7/8˝) and small (1-3/8˝).

3700 Series Windows
CW3700 Series
Application
Casement Type
Frame Joints
Screw-spline
Window Joints
Mitered-clip, Epoxy & Stake
Glass Thickness
1/4" & 1"
Face Width
2-3/8"
Frame Depth
2"
Hardware
Air Infiltration
0.12/s/m2
Water Penetration
12.11 PSF
Product Designator
CW-P660-C
Design Pressure
60.15 PSF
Screen

CW Casement
CAD File (DWG):
Details:
Installation Instructions:
Test Reports:
Specs:

PDF File
ZIP File

PDF File
E3701
E3702
E3703
E3709
E3710
E3720
PDF File
PDF File
Text File
