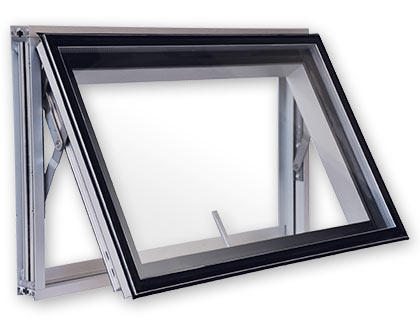

Like the CVW 3700, this is a project-out, concealed-style window, again offering the elegant look of an all-glass exterior. The distinction between these models is that the HBW 3700 is installed into the more popular storefront framing system as it is constructed with a conventional frame. Manual and rotary operations are available.

3700 Series Windows HBW3700 Series
Application
Hybrid
Frame Joints
Screw-spline
Window Joints
Mitered-clip, Epoxy & Stake
Glass Thickness
1"
Face Width
-
Frame Depth
3-1/2"
Hardware
Air Infiltration
0.03CFM/Ft2 @ 6.24psf
Static Water
12 PSF
AP-AW-70
Life Cycle Tested
1250 Cycles
Screen

HBW Hybrid
CAD File (DWG):
Details:
Installation Instructions:
Test Reports:
Specs:
E3700
E3705
E3710
E3720
NA
PDF File
NA
